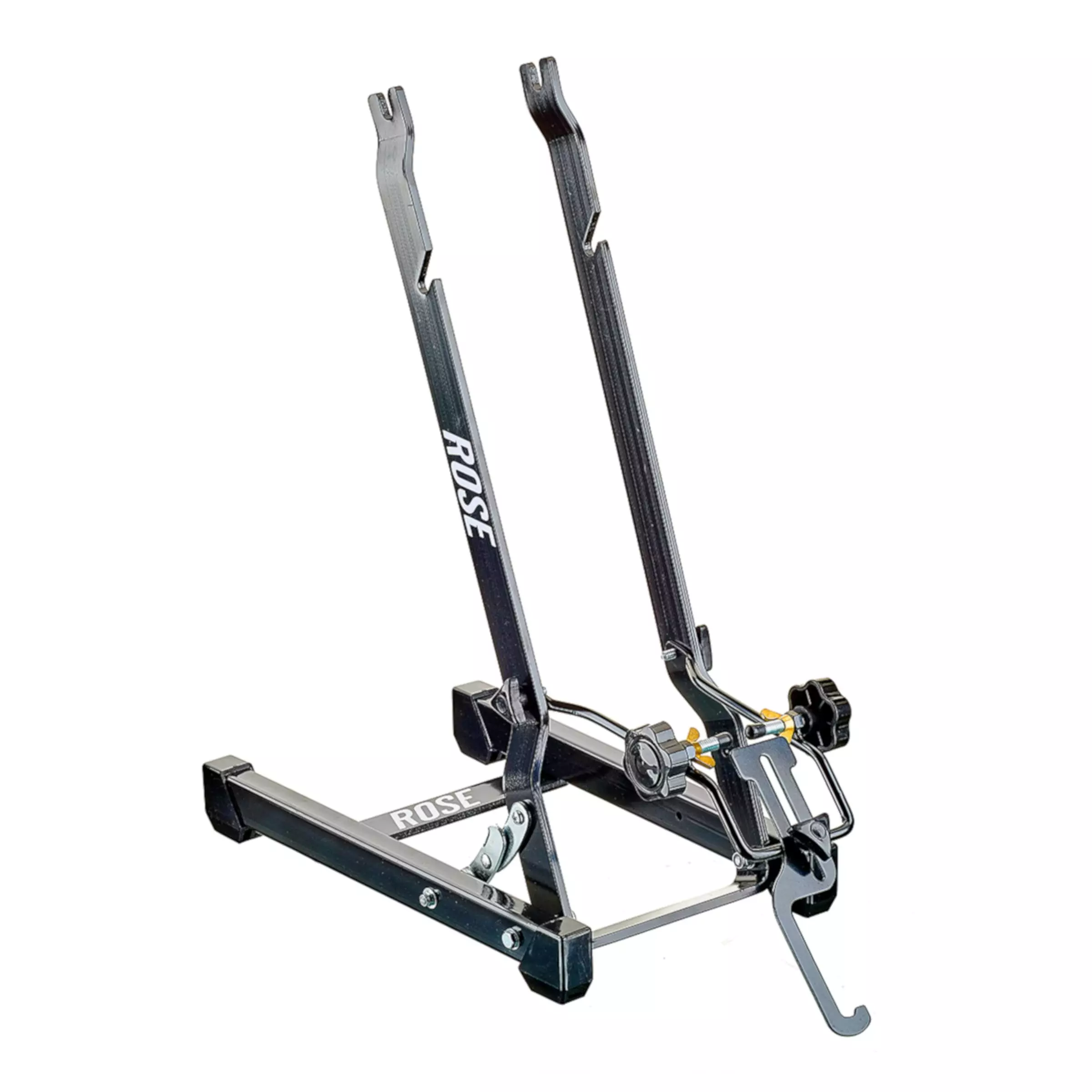

ROSE Pro Truing Stand

You can easily check the radial and lateral run-out of your wheels with the foldable ROSE Pro truing stand, to align them exactly. The robust steel construction accepts wheel sizes from 24″-29″ via quick release, although thru-axle hubs can of course also be mounted with an optional adapter. No matter whether with or without tyres.

In the optimised PRO version of the ROSE centring stand, we implemented the requirements for high precision of the tool geometries and practical adjustability of the individually adjustable measuring probes.

The large standing surface offers you enough stability without having to screw the feet to the workstation in your hobby workshop. The clever folding mechanism makes the Pro truing stand by ROSE ideal for mobile use, as it is handy to take along and requires little space for storage. With this solid entry-level model for wheel centring, things will run smoothly again even without a lot of professional technology.

Details:
• Mobile truing stand
• Suitable for wheels from 16″ – 29″ with quick release skewers
• For wheels with thru axle an adapter is necessary
• Shows the radial and lateral runout of the bicycle rims

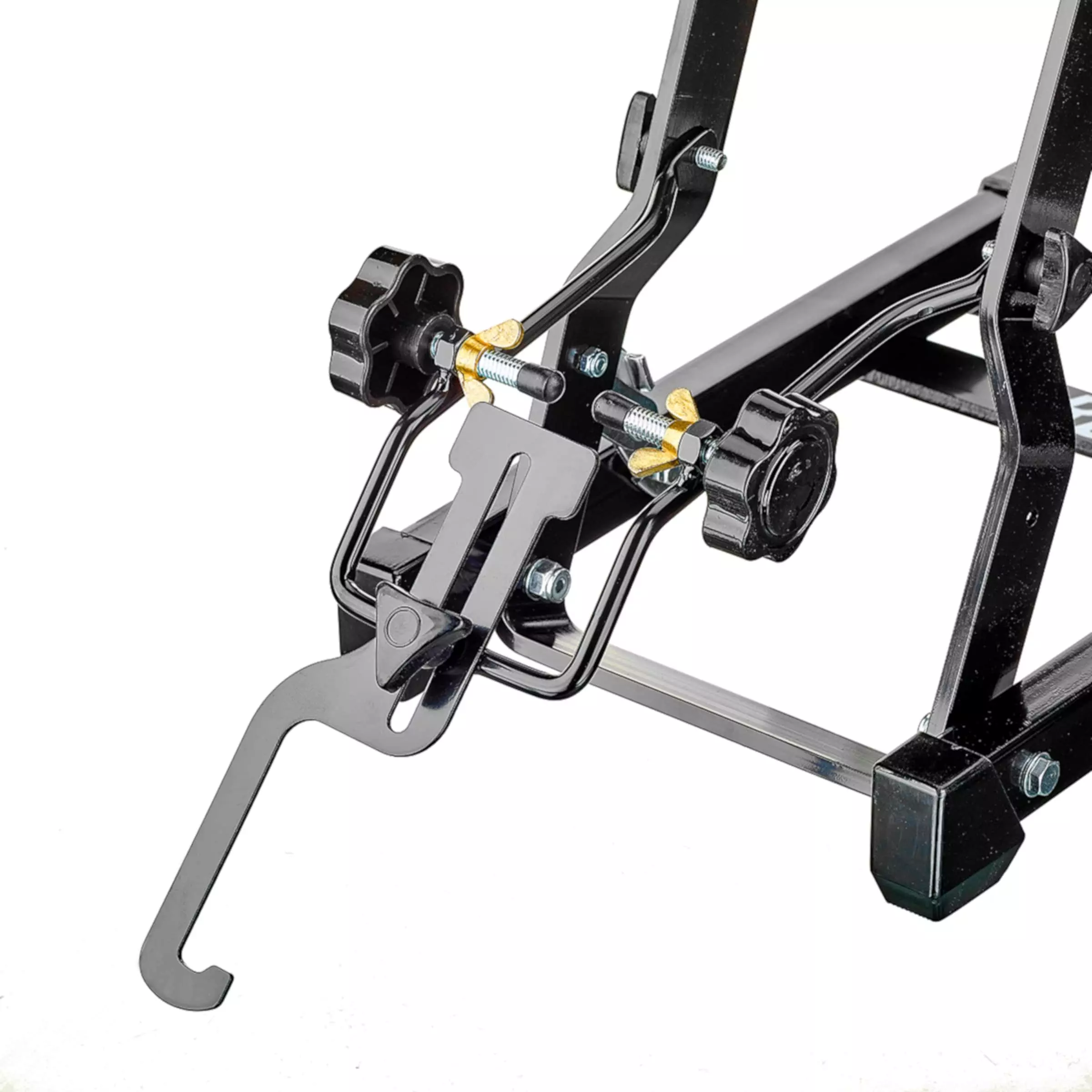

• Separately adjustable probes with rim protection caps
• Cantilevers lockable on both sides with rotary knob

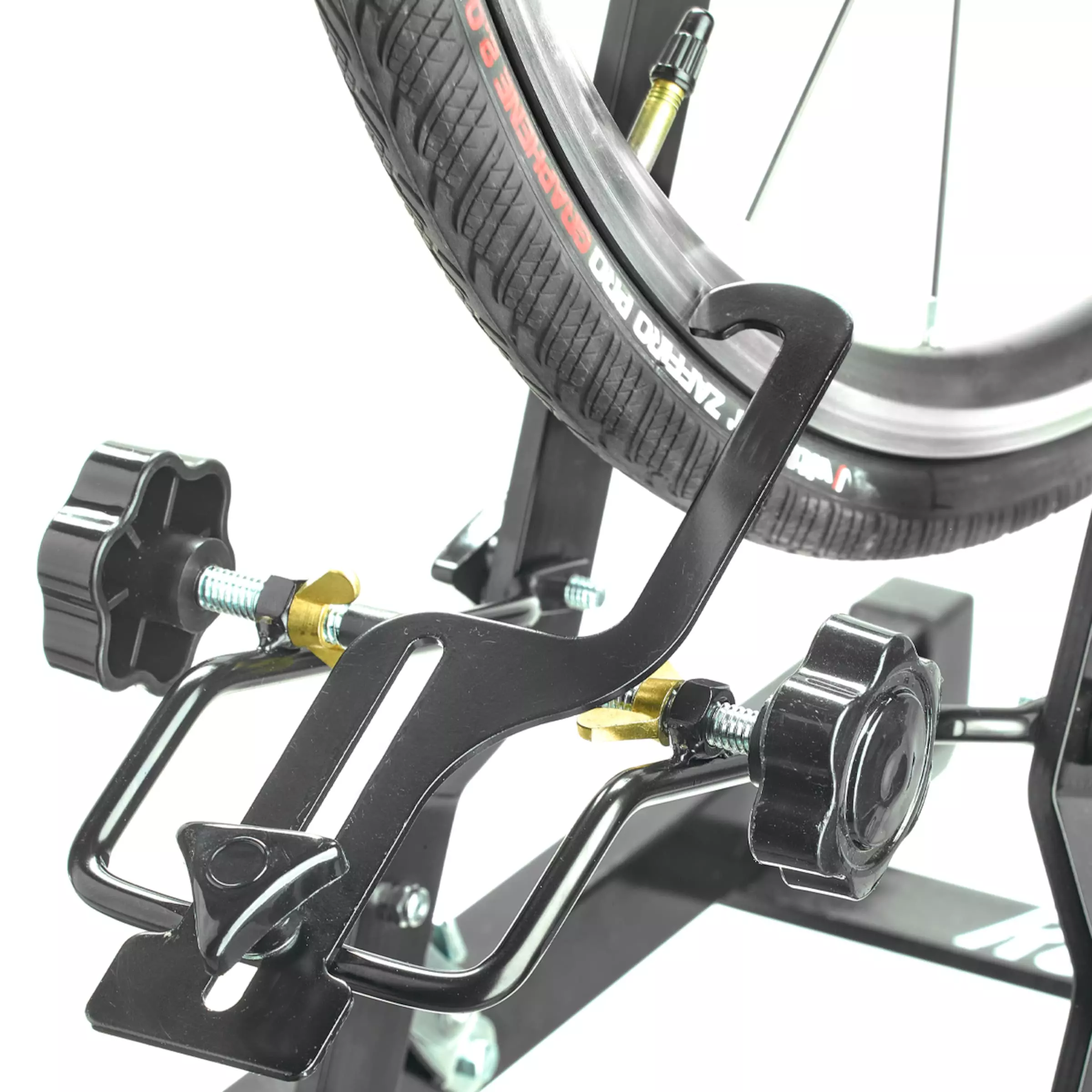

• Rotatable height sensor for wheels with and without tyres
• Locking hinge for the holder arm
• Foldable to save space
• Non-slip plastic feet

Technical details:
• Axle mounting Ø: approx. 9 mm
• Dimensions: 37 x 22 cm (standing surface)
• Material: steel, lacquered / galvanised
• Weight: approx. 2100 g

In the box:
• 1ROSE Pro Truing Stand

Tip:
For clamping thru-axle hubs we recommend the SHIMANO adapter TL-FH12 (prod. code 2001234) or TL-HB16 (prod. code 2001252).
