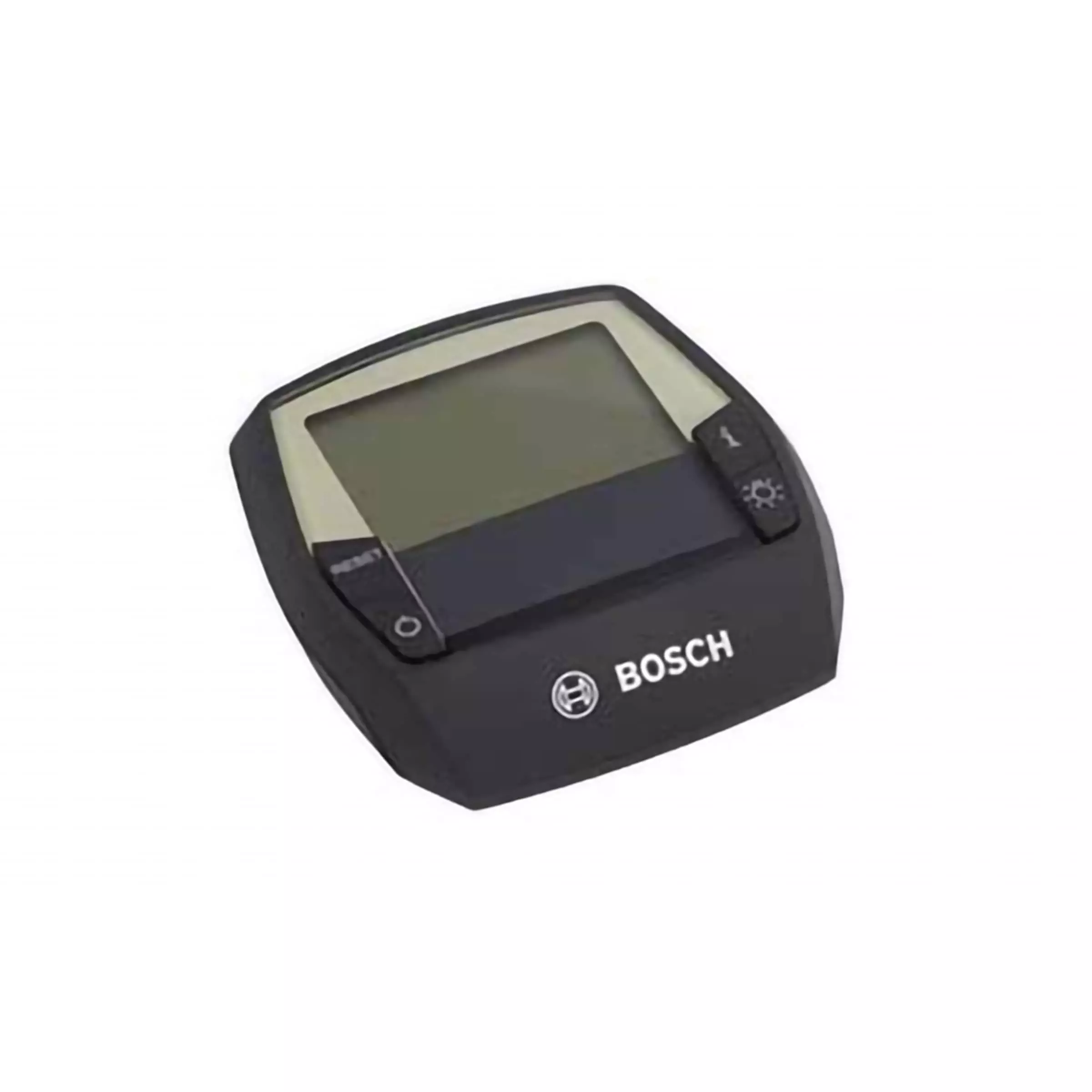

Bosch E-Bike Display Intuvia Anthracite

Intuvia Performance replacement display suitable for Bosch e-bike drives from MY 2014.

· Clearly arranged display gives information on charging status, speed, riding mode, range, trip distance, total distance and time
· Can be read easily in all light conditions thanks to being placed in the rider’s field of view
· Optional service interval display
· Energy supply of external devices (e.g. smartphone) via micro USB connection (Bosch USB cable required, prod. code: 2002729)
· All basic information is also displayed in off-board mode when removed

Compatibility:
· Compatible with all Bosch e-bike drives from MY 2014
(Attention: For drive units older than 2014 with HMI display, you’ll need the Intuvia retrofitting kit (prod. code: 2273731) to replace the existing HMI display)

Specs:
· Anthracite (Performance Line)
· Internal lithium-ion battery (3,7 V; 230 mAh)
· Operating temperature: -5 up to +40°C
· Storage temperature: -10 up to +50°C
· Charging temperature: 0 up to +40°C
· Charging current via USB interface: max. 500 mA
· Charging voltage at USB interface 5 V
· IP 54 (protected from dust and splash water)

In the box: Bosch Intuvia display

Attention: After installation, it might be necessary to have the software updated at a specialist dealer.
